36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Gambar besar : 36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Detail produk:

Tempat asal:	Cina
Nama merek:	China Brand
Sertifikasi:	API 7-1
Nomor model:	36 "String/Near Bit Stabilizer

Syarat-syarat pembayaran & pengiriman:

Kemasan rincian:	Kasing kayu
Waktu pengiriman:	20-40 hari
Syarat-syarat pembayaran:	T/t

Kontak

36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Deskripsi

Bahan:

4145H

Model:

Bilah yang dilas

Menghadapi Keras:

HF1000-HF5000

Koneksi:

NC 50

Menyoroti:

36 inch spiral welded blade stabilizer

drilling stabilizer with fishing neck

stabilizer with 8-5/8 H90 box

36" Near Bit/String Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8"Reg. box x 8-5/8 H90 box up

Product Specifications

Attribute	Value
Material	4145H
Model	Welded Blades
Hard Facing	HF1000-HF5000
Connection	NC 50

Product Description

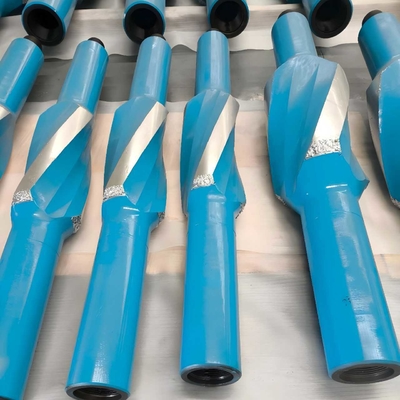

36" Near Bit/String Spiral Welded Blade Stabilizer featuring an 11" fishing neck with 8 5/8" Reg. box connection and 8-5/8 H90 box up configuration.

Detailed Specifications

Attribute	Value
Stabilizer Type	Near Bit Spiral Welded Blade
OD	36 inches
Fishing Neck	11 inches
Connection	8 5/8" Reg. box x 8-5/8 H90 box up

APPLICATION

We supplies a complete line of downhole drilling stabilizers to increase rate of penetration and control hole deviation problems. All these stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) are designed to meet or exceed the strictest quality control and quality assurance standards. All alloy stabilizers are manufactured from AISI 4145H modified heat-treated steel for a wide variety of configurations and hole sizes

FIVE KINDS OF HARD FACING

1. HF1000: Crushed tungsten carbide inserts(TCI) held in a nickel bronze matrix

2. HF2000: Trapezoidal tungsten carbide inserts(TCI) held a sintered carbide nickel bronze matrix

3. HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades

4. HF4000: Tungsten carbide inserts (button type)are pressed tightly in the holes of blades at room temperature

5. HF5000: This oxy-acetylene process pplies tough molten carbide particles of varying sizes in a nickel chrome matrix

TECHNICAL DATASHEET
